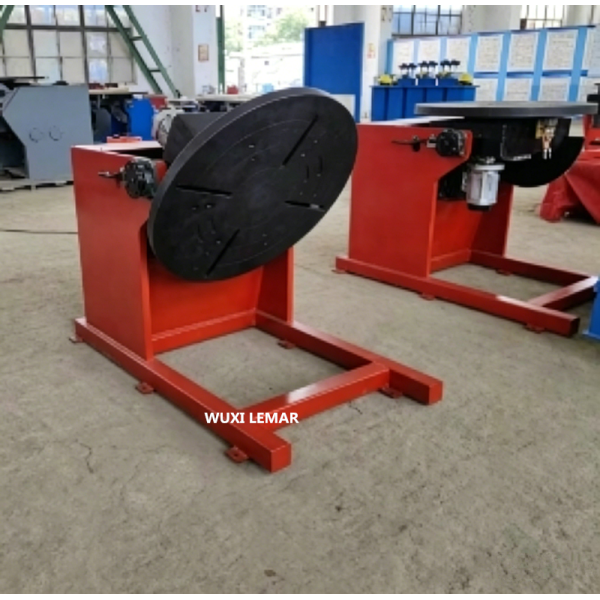

5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table

  • 1
  • 2
  • 3

Supply Ability : 500 units/month

Model NO. : BWJ-5t

Model Number : BWJ-5t

Worktable Diameter : 1600mm

Payment Terms : D/A,L/C,D/P,T/T

Max Eccentricity Distance : 150mm

Horizontal Loading Weight : 5000kg

Price : 500-1000USD

Voltage : 110V/220V

Function : Pipe Flange Welding Turntable

MOQ : 1

Delivery Time : 10-20 work days

Rotation Speed : 0.09-0.9rpm

Postioner Type : Seat Type

Certification : CE

Packaging Details : 170.00cm * 190.00cm * 190.00cm

Place of Origin : WUXI

Brand Name : LEMAR

Table Height : 1800mm

Contact Now

5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
Product Overview

The 5 ton welding positioner is a classic medium-load rotary welding workstation designed for general industrial fabrication applications.

  • Provides 360° full rotation and electric tilting capability for optimal flat welding positioning
  • Reduces repeated clamping operations and eliminates welding dead angles
  • Enhances welding consistency while saving labor costs
  • Features compact, heavy-duty construction suitable for batch welding of medium-sized workpieces
  • Compatible with automatic welding machines for semi-automatic and fully automatic welding production

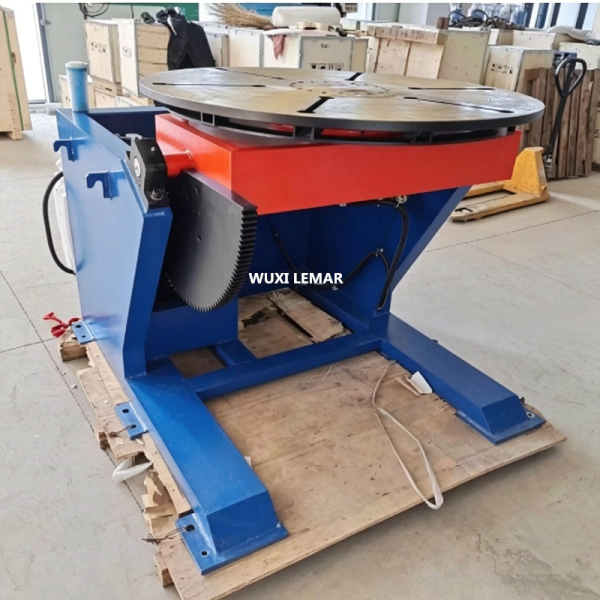

5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table 5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
Technical Parameters
Item Specification
Model HB-50 Welding Positioner
Rated Load 5 Ton / 5000kg
Rotation Mode 360° Continuous Rotation
Tilting Angle 0°-90° Electric Tilting
Turntable Diameter 1200mm (Customizable)
Rotation Speed 0.1-1.0 r/min Stepless Adjustable
Tilting Motor Power 1.5kW
Rotation Motor Power 1.1kW
Control System Frequency Inverter + Hand Pendant
Power Supply 380V/50Hz, 3 Phase (Customizable)
Application Pipe, Vessel, Tank, Structural Welding
Certification CE Certified
Core Features
  • 5 Ton Standard Load Capacity: Stable bearing for 5000kg medium workpieces with no shaking during operation
  • 360° Continuous Rotation: Uniform rotary motion ensures even welding bead forming
  • 0-90° Electric Tilting: Flexible angle adjustment for flat welding, horizontal welding and fillet welding requirements
  • Frequency Stepless Speed Control: Smooth speed adjustment without jitter, suitable for precise welding
  • Heavy-duty Steel Structure: Thickened base and turntable for durability and anti-deformation
  • Simple Operation: Handheld pendant control for easy worker operation

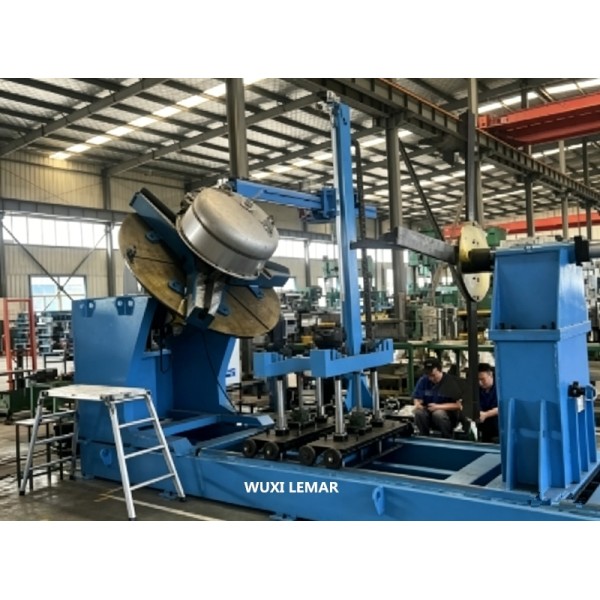

  • Wide Compatibility: Perfect match with welding manipulator and automatic welding systems
5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table 5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
Application Scope
  • Medium-sized pressure vessel and cylinder welding
  • Pipe flange welding, pipe fitting and pipe assembly work
  • Stainless steel tank, round tank and small vessel fabrication
  • Steel structure cylindrical parts welding
  • Workpiece surface polishing, coating and anti-corrosion treatment
  • Batch production in mechanical processing and welding workshops

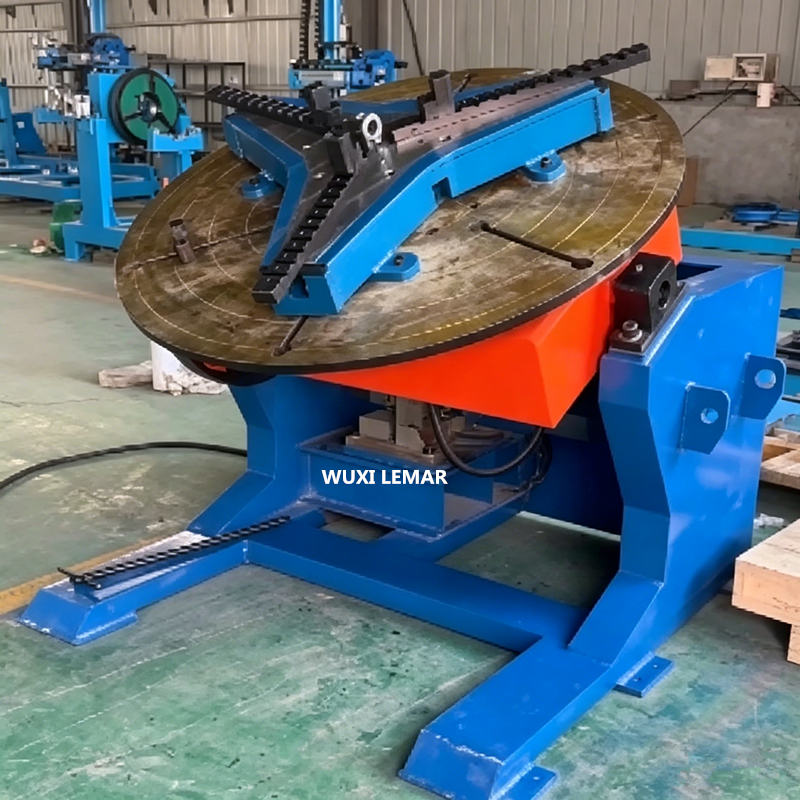

5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table 5 Ton Welding Positioner 360° Rotation 0-90° Tilting Rotary Welding Table
Working Principle

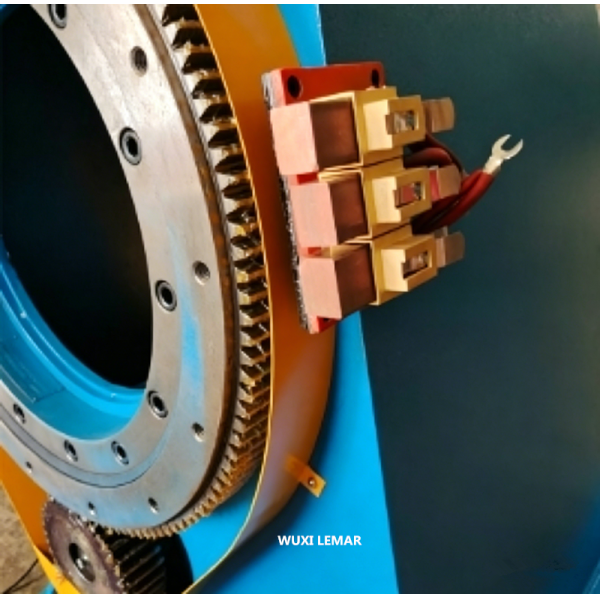

The 5 ton welding positioner utilizes a dual motor drive system for independent rotation and tilting functions.

  • The turntable carries the workpiece and performs 360° uniform rotation
  • Electric tilting adjusts workpiece angle freely to convert overhead welding into flat welding
  • Frequency converter controls rotating speed precisely to coordinate with welding speed
  • Stable mechanical transmission ensures long-term continuous welding operation
Frequently Asked Questions
Q: What is the load capacity of this welding positioner?
A: Standard rated load is 5 ton (5000kg), suitable for medium-sized workpieces.
Q: Does it support tilting and full rotation?
A: Yes, 0-90° electric tilting + 360° continuous rotation.
Q: Is the rotation speed adjustable?
A: Stepless frequency speed adjustable, very stable for precision welding.
Q: Can it match automatic welding machine?
A: Fully compatible with welding manipulator for automatic welding line.
Q: What is the warranty?
A: 12-month full machine warranty and 24-hour online support.
