50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting

Product Categories
Wuxi Lemar Machinery Equipments Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting

  • 1
  • 2
  • 3

Supply Ability : 500 units/month

Filt Mode : Manual

Model Number : BWJ-5

Max Eccentricity Distance : 200mm

MOQ : 1

Delivery Time : 10-20 work days

Tilt Angle : 0-90

Welder Holder : Yes

Payment Terms : L/C,D/A,D/P,T/T

Suitable Chuck : Kd-150/200/300/400/500/600

Price : 500-1000USD

Worktable Diameter : φ250mm (Custom Available)

Certification : CE

Voltage : 110V/220V

Brand Name : LEMAR

Model NO. : BWJ-05

Place of Origin : WUXI

Horizontal Rotation Speed : 0-3rpm Stepless Adjustable

Packaging Details : 38.00cm * 37.00cm * 38.00cm

Contact Now

50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting

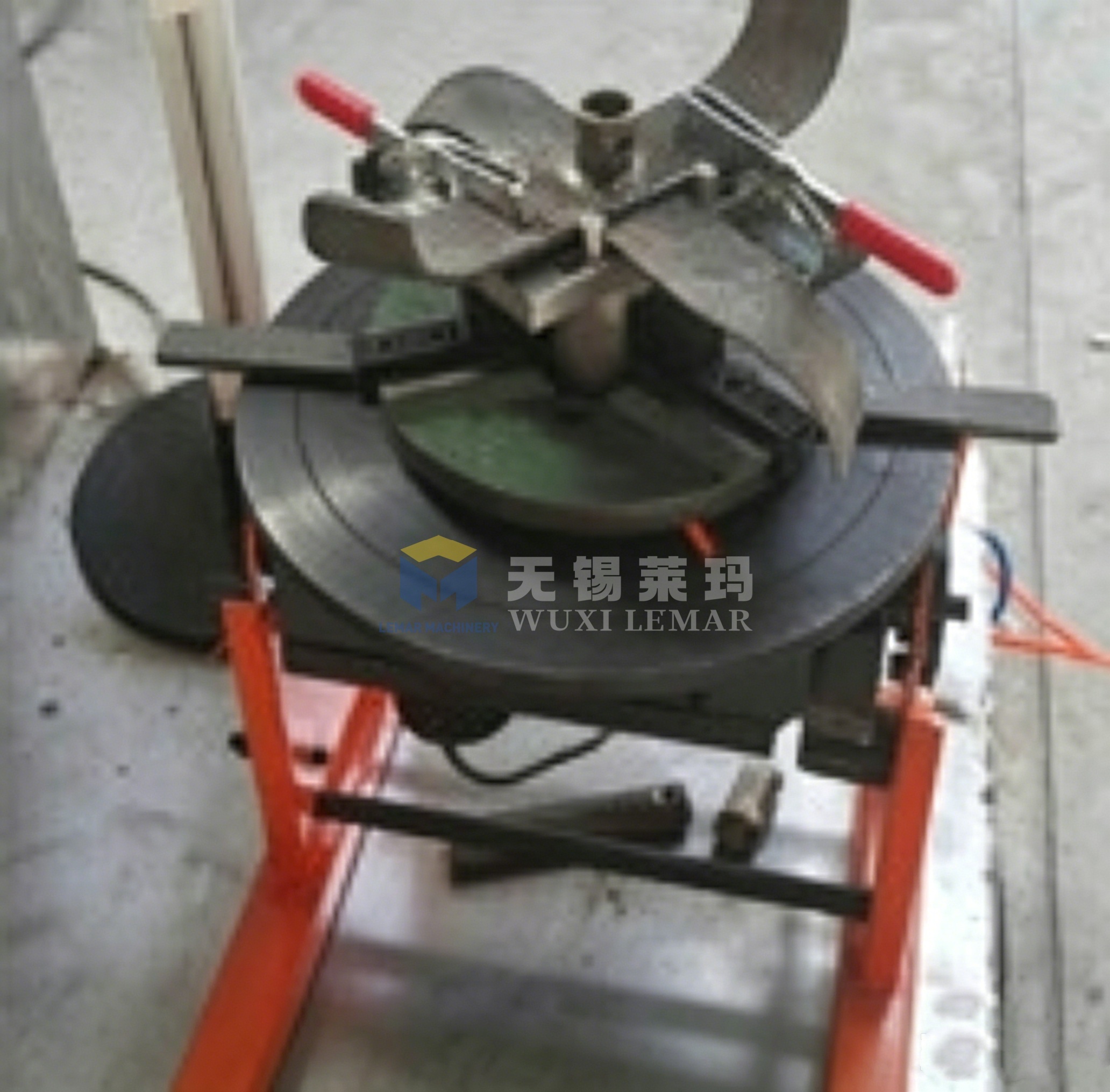

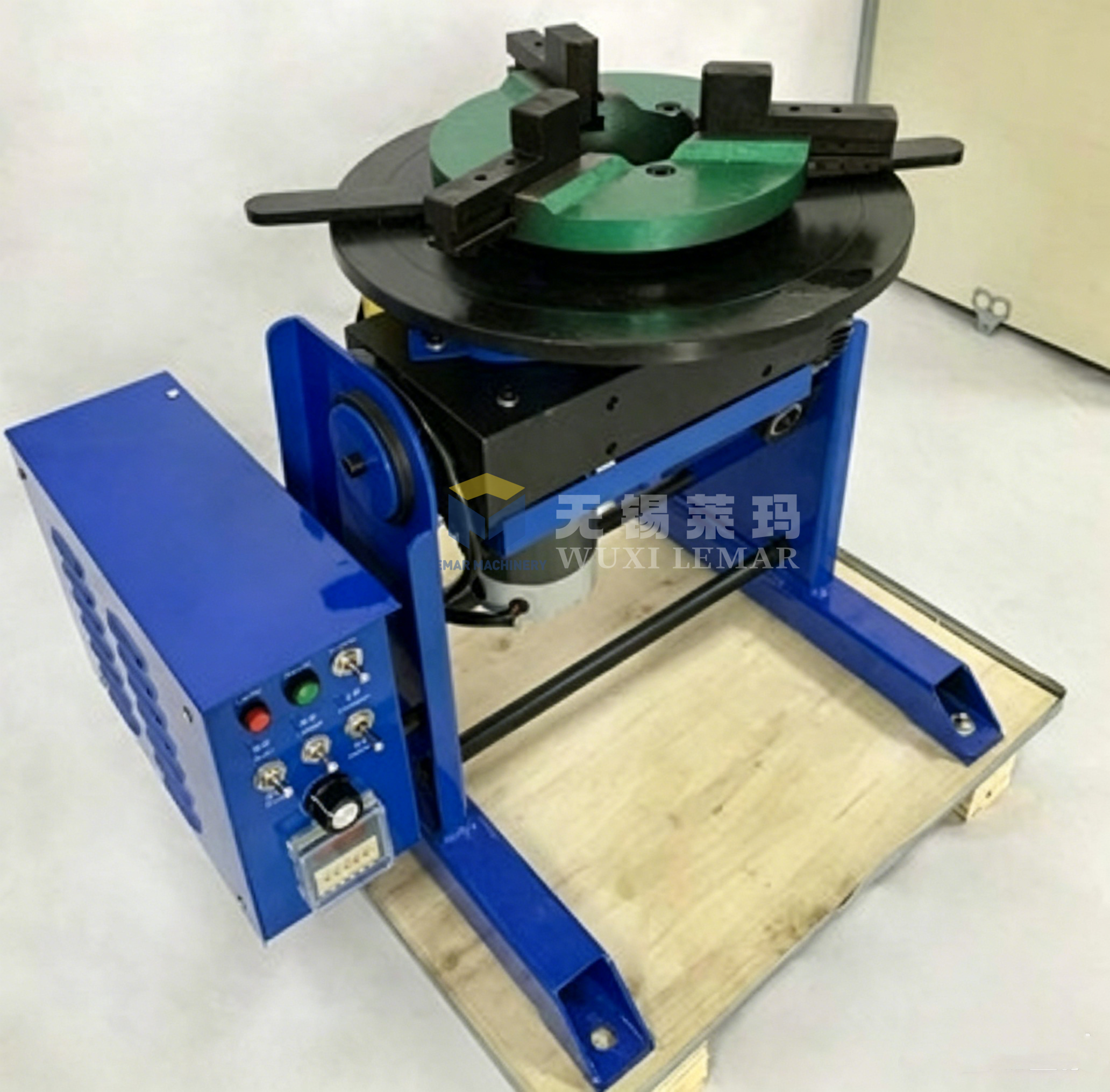

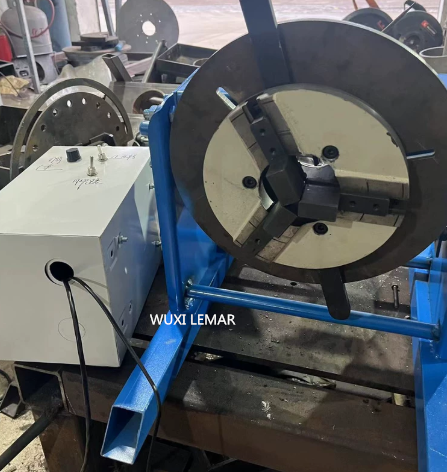

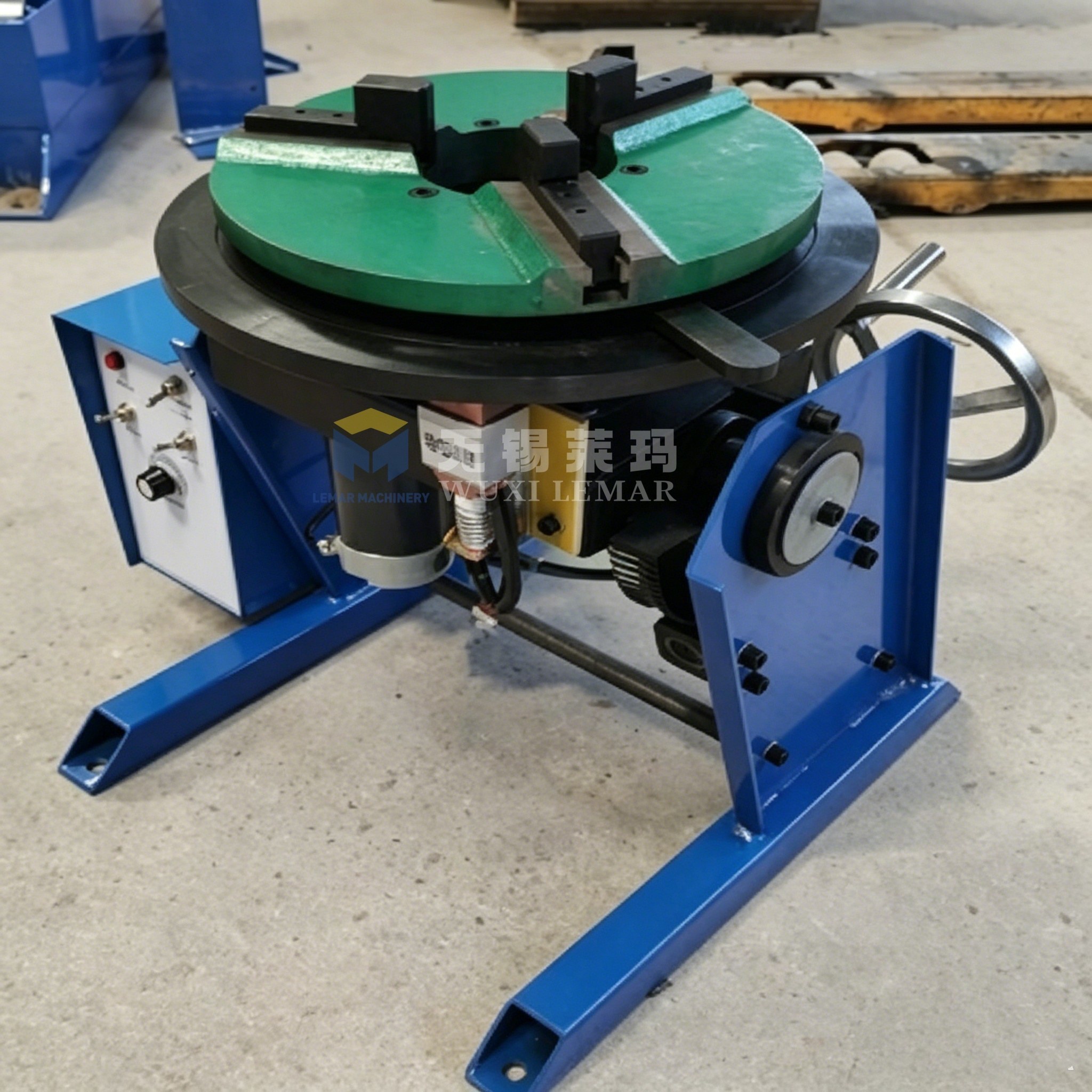

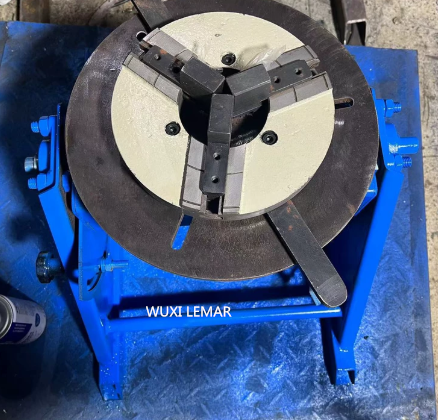

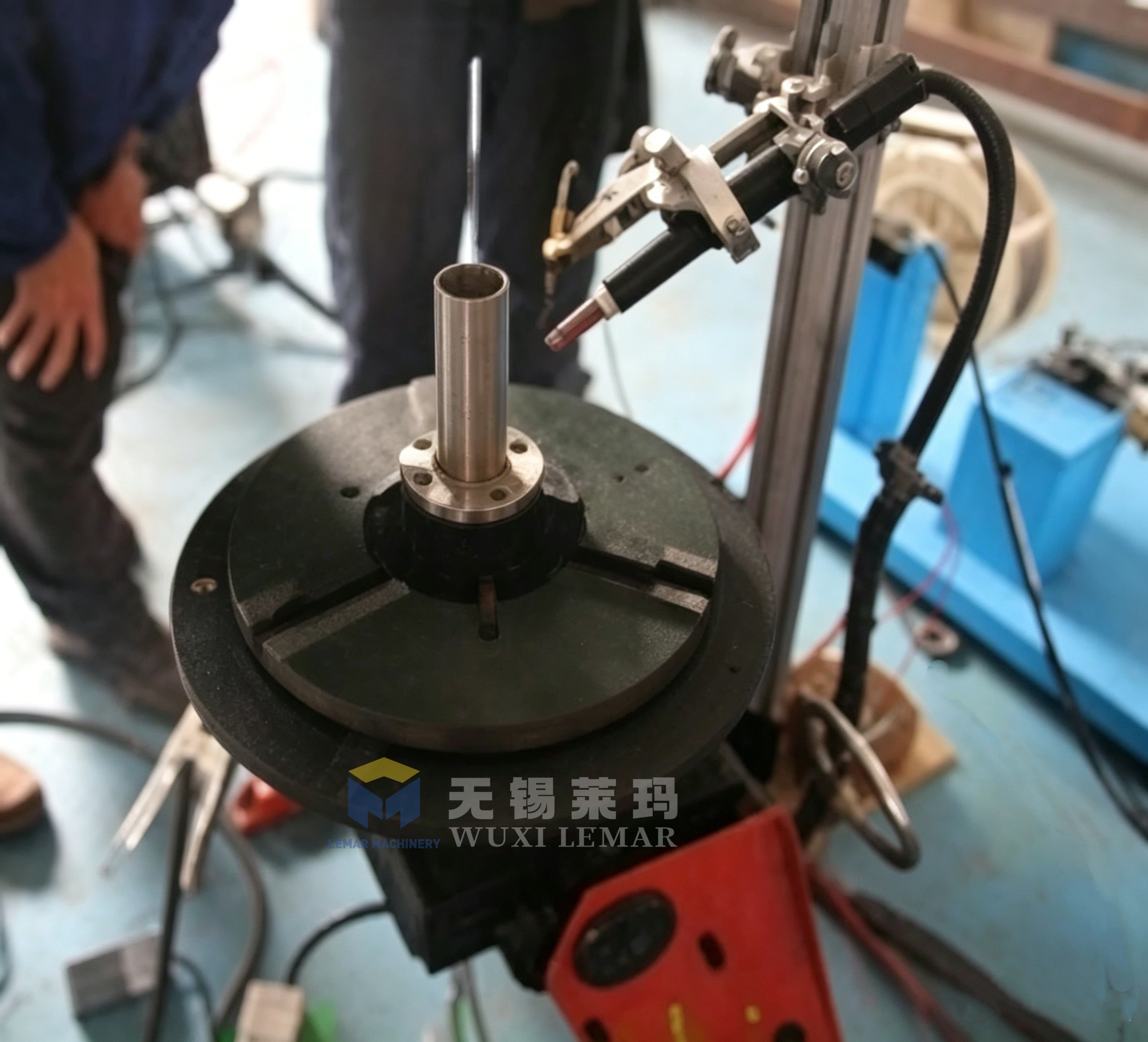

This 50kg welding positioner is compact light-duty welding auxiliary equipment, widely used for circumferential welding of small cylinders, flanges, pipe fittings and round workpieces.
Equipped with rotating and tilting function, the workpiece can be rotated to ideal welding angle, helping operators finish high-quality weld seams easily. Small footprint, easy to move, perfect for small workshops and batch production.
50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting
Application Fields
  • Small flange & pipe fitting processing
  • Hardware & metal parts batch welding
  • Instrument and pressure vessel component welding
  • Automotive accessory welding workshop
  • Small-batch metal fabrication factory
  • Research laboratory welding test

50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting

Technical Specifications
Item Parameter
Max Loading Capacity 50 KG
Table Rotation 360° continuous rotation
Tilt Angle 0-90° adjustable
Rotation Speed VFD stepless adjustable
Control Mode Main control box + Hand-held pendant
Worktable T-slot table
Working Voltage Customized (220V/380V etc.)
Application Small cylinder, flange, pipe fitting circumferential welding
Main Features
Compact & Light-weight Structure
Small body with stable frame, occupies little workshop space, convenient to relocate. Max loading capacity reaches 50kg.
Rotary + Tilting Function
Worktable rotates 360°, tilt angle adjustable, adjusts workpiece to best welding position for flat-position welding.
VFD Variable-frequency Speed Control
Smooth stepless rotation speed adjustment, stable running, low noise, matches different welding process requirements.
Practical Worktable
Standard worktable with T-slots, convenient for clamping fixtures, jigs and various workpieces.
Handheld Pendant Control
Separate hand-hold controller, easy onsite operation for start, stop, rotation and tilt adjustment.
Customization Available
Support custom table size, working voltage and other special requirements based on user demand.
50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting
Reasons For Cooperation
  • Direct Factory Supply: We are professional manufacturer for welding automation equipment. No middle-man, stable quality and competitive price.
  • Strict Pre-shipment Test: Every 50kg welding positioner will complete running test before delivery to ensure stable performance.
  • Flexible Custom Service: We can adjust table dimension, voltage and other structures for your special workpiece. Drawing confirmation before production.
  • Complete Product Range: We supply full series welding positioners, welding rotators, longitudinal seam welding machines, support one-stop procurement.
Delivery & Packaging
Electric components packed in export plywood case; main body packed by plastic wrap. Suitable for 20GP container loading.
Trade terms: EXW, FOB, CIF, DAP are all available.
50KG Welding Positioner Small Rotary Tilt Welding Turntable for Flange Pipe Fitting
Technical Support & After-Sales
  • 12-months whole machine warranty (exclude wearing parts and man-made damage)
  • Long-term free online technical consultation
  • English operation manual and operation video provided
  • Affordable spare parts supply after warranty
  • Online remote fault troubleshooting
